EnglishRS-232, 3V to 5.5V, 250kbps

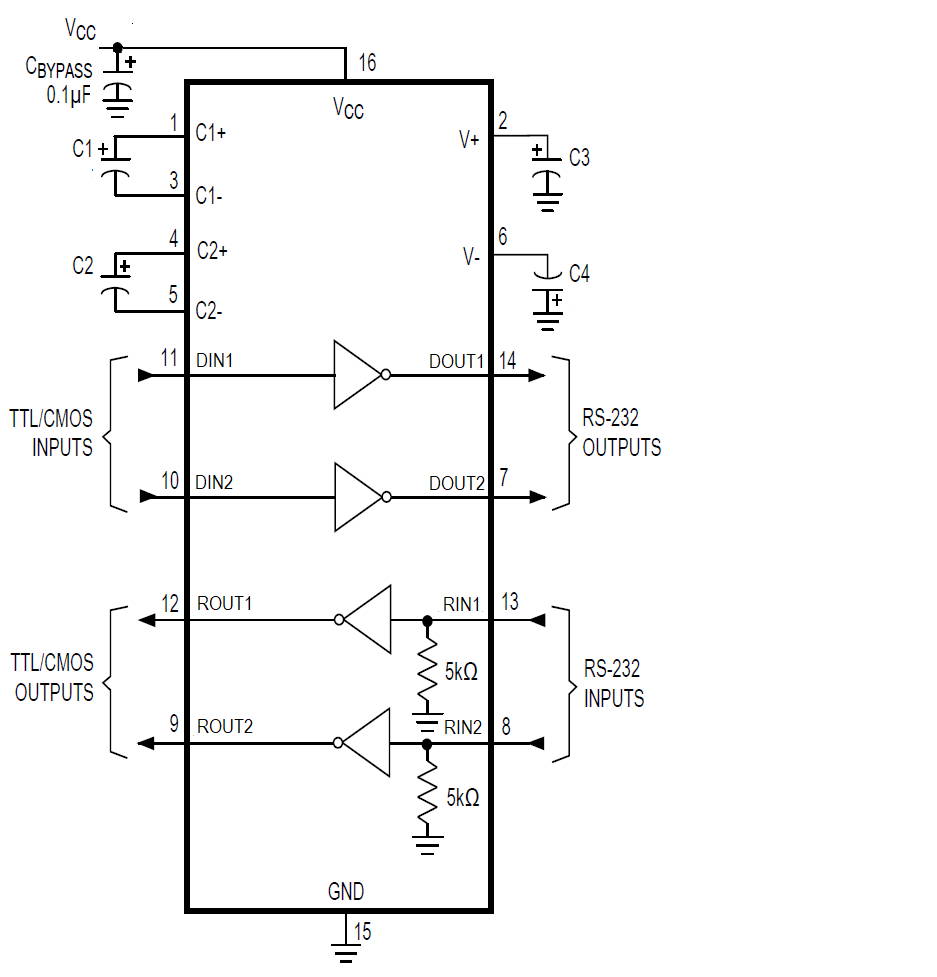

The BL13232E consists of two drivers, two receivers, and a dual charge-pump circuit with ±12kV IEC 61000-4-2 Contact Discharge ESD protection. The BL13232E meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3V to 5.5V supply. The device operates at data signaling rates up to 250 kbps.
- ESD protection for RS-232 Bus Pins
- ±12kV (IEC61000-4-2, Contact Discharge)
- ±15kV (IEC61000-4-2, Air-Gap Discharge)
- Meets the Requirements of TIA/EIA-232-F standard
- Wide Power Supply Range: Single +3V to +5.5V
- Operates up to 250kbps
- Two Drivers and Two Receivers
- External Capacitors: 4 × 0.1 μF
- Accepts 5V Logic Input With 3.3V Supply
- SOP16 and TSSOP16 packages.
